P100/140

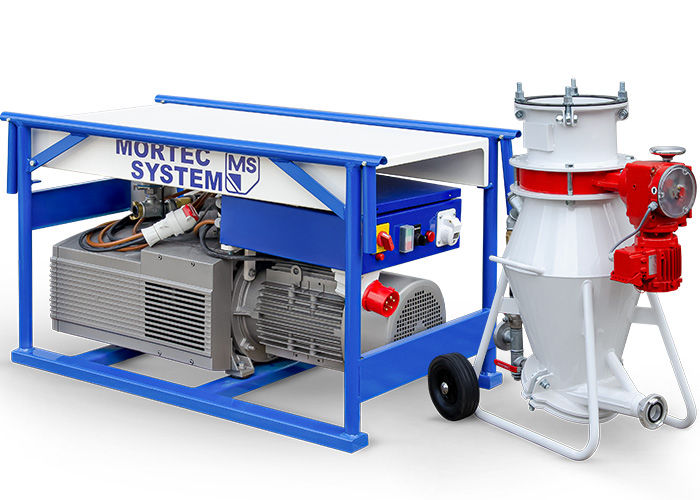

The pneumatic conveyor system
for gravitation silos

The conveying system FF100/140 is used in combination with gravity-flow silos or containers for feeding application devices with dry motar or plaster to a long distance.

This equipment does away with the need for the timeconsuming unloading, carrying, opening and emptying of bagged material because it transports the product through its sealed system directly to the application device.

Low noise air compressor
from Becker

Electromechanical
control box

Compact and high delivery performance

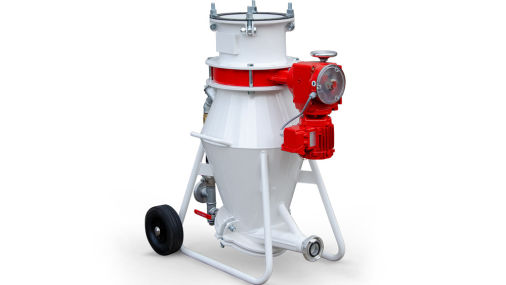

Compact pressure pot with electrically actuated flap valve

The most important
advantages at a glance
  • High quality components
  • Electromechanical control box
  • High performance
  • Oilfree compressor

Technical data

Compressor KDT3: 100/140 m3/h
Engine: 5,5/7,5 kW -400V 50Hz
Capacity: 100/140 m3/h
Distance: max. 130 mt.
Pressure: max. 2 bar

Rudi Stoffner
  • "The high requirements at the construction site are challenging
  • for men and machines and thus demand a great deal of quality."
